I'll be away from my shop until July 14th 2022. Delivery of switch tip orders won't happen until after my return. Thanks, David.

No export of Brazilian rosewood parts beyond USA borders.

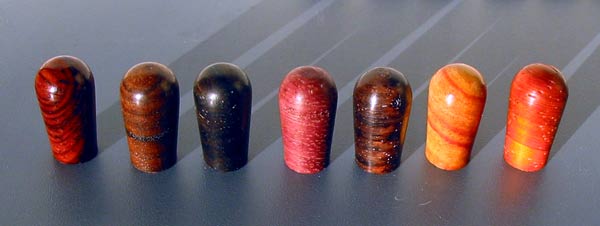

Wood switch tips or switch covers for Gibson® Les Paul, LP 3-way toggle switches The standard threads are SAE 8-32. Many imported and kit guitars such as Eastman, Tokai, Washburn and Warmoth will have metric threads which are M4X0.7 (4mm) or for Carvin®, some Epiphone, PRS "SE" (except SE hollowbody II which is M4x0.7) and Schecter® use the smaller M3.5x0.6 (3.5mm). "Switchcraft" will be stamped into one of the metal legs below the threads on the domestic switches. The smaller metric M3.5x0.6 threads are often found on switches enclosed in a rectangular metal box. Some Epiphone guitars have M3x0.5 (3mm) threads just to confuse things a little further. For Free-Way Toggle models 3X3-03/5/7 thread is M3.5X0.6 Model 3X3-04 thread is 8-32.

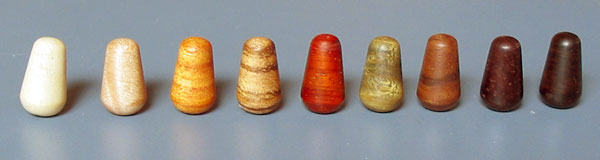

The tele®, telecaster® barrel switch tip is available as are the tapered switch covers for Fender strat®, Stratocaster® that use CRL 3-way and 5-way blade switches which are .052" (1.3mm) x .189" (4.8mm) x .310" (8mm). Wood Fender® switch tips also fit the EMG, Oak Grigsby and Tritan brand switches. PRS guitars along with Most Asian Strat and Tele copies with 3 and 5 way blade switches will use a narrow blade that's .048"(1.2mm) x .140" (3.6mm) x .3" (7.7mm) long. The Free-way blade switches also use the narrow Asian version

Switch tip selections
Pass the cursor over any small image to see it expanded in the center. Clicking on the switch tip's small image or name underneath on the left will take you to the Paypal "Buy it now" page for that style of tip.
